BSD Warning Displayed on the Opposite Side

BSD Warning Displayed on the Opposite Side

If the BSD warning displays on the opposite side from where vehicles are approaching (e.g., warning on the left when a vehicle is approaching from your right rear), you can troubleshoot using the following steps:

1. Enable Camera Image Mirroring:

Navigate to Video - Video Settings - Mirror

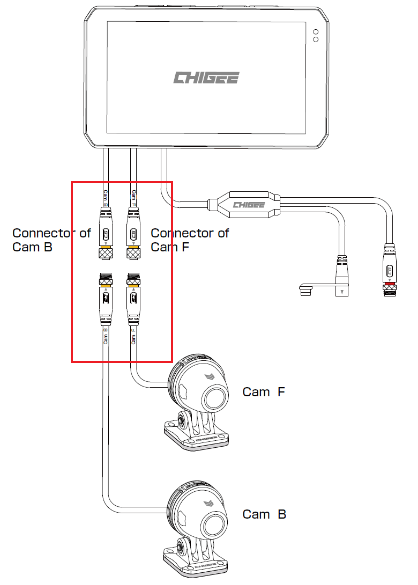

2. Check Camera and Host Interface:

If you have already enabled camera image mirroring function but the BSD display remains reversed, it may be due to incorrect camera and host interface connection. Please try switching the connections.
