Install CGRC Remote Control CAN

Install CGRC Remote Control CAN

During setup, all you need to do is plug the CGRC CAN into one of two module interfaces: either the 4-pin port for the RDC module, which handles tire pressure monitoring, or the 8-pin port for the DWA module, which is the bike's anti-theft alarm system.

Follow these steps to install

1. Locate the DWA / RDC module

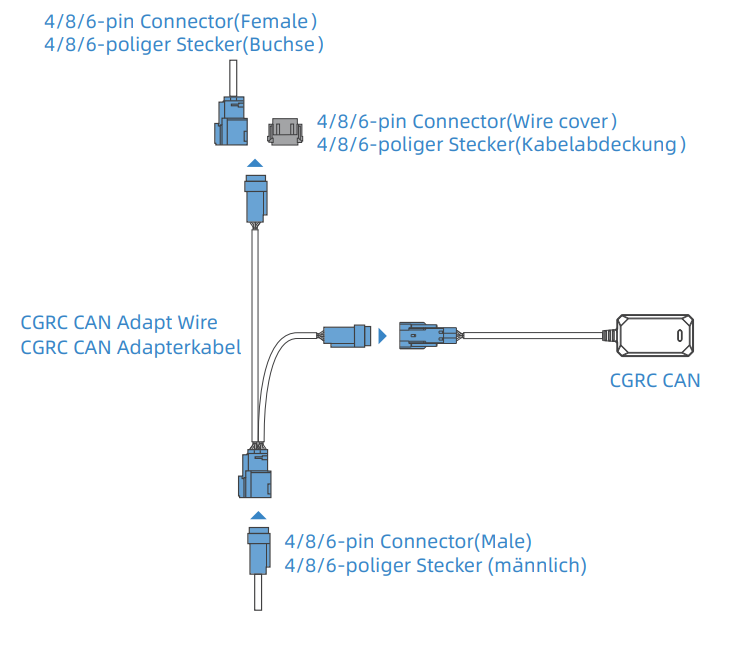

2. Unplug the original connector. Connect CGRC CAN to the corresponding module. Refer to the video below for guidance.


Notes
1. No Hot-Swapping:
  1. Do not connect or disconnect the CGRC CAN while your motorcycle is powered on.
  2. Hot-swapping can generate error codes, potentially causing motorcycle malfunction.
2. Proper Installation Procedure:
  1. Power off your motorcycle completely before installing the CGRC CAN.
  2. After installation, ensure you reconnect the other end of the CGRC CAN.


Pair the CGRC Can with the AIO-5 lite

Once connected, you'll then need to pair the CGRC Can with the AIO-5 lite via Bluetooth. Refer to the video below for guidance.
Timeline:
0:00 - 0:25: Pair the CGRC Can with the AIO-5 lite
0:26 - 1:23: Control CGRC CAN


Control the AIO-5 Lite and TFT using the Wonder Wheel
