How does the parking monitor mode work?

How does the parking monitor mode work?

The parking monitor automatically records footage when vibration is detected after turning off your motorcycle's engine.
Here's how it works:
After shutting off the engine, the AIO-5 Lite enters a low-power standby mode. If vibration is sensed, the device will power on (taking around 12 seconds) and immediately begin recording 60 seconds of footage from both cameras.

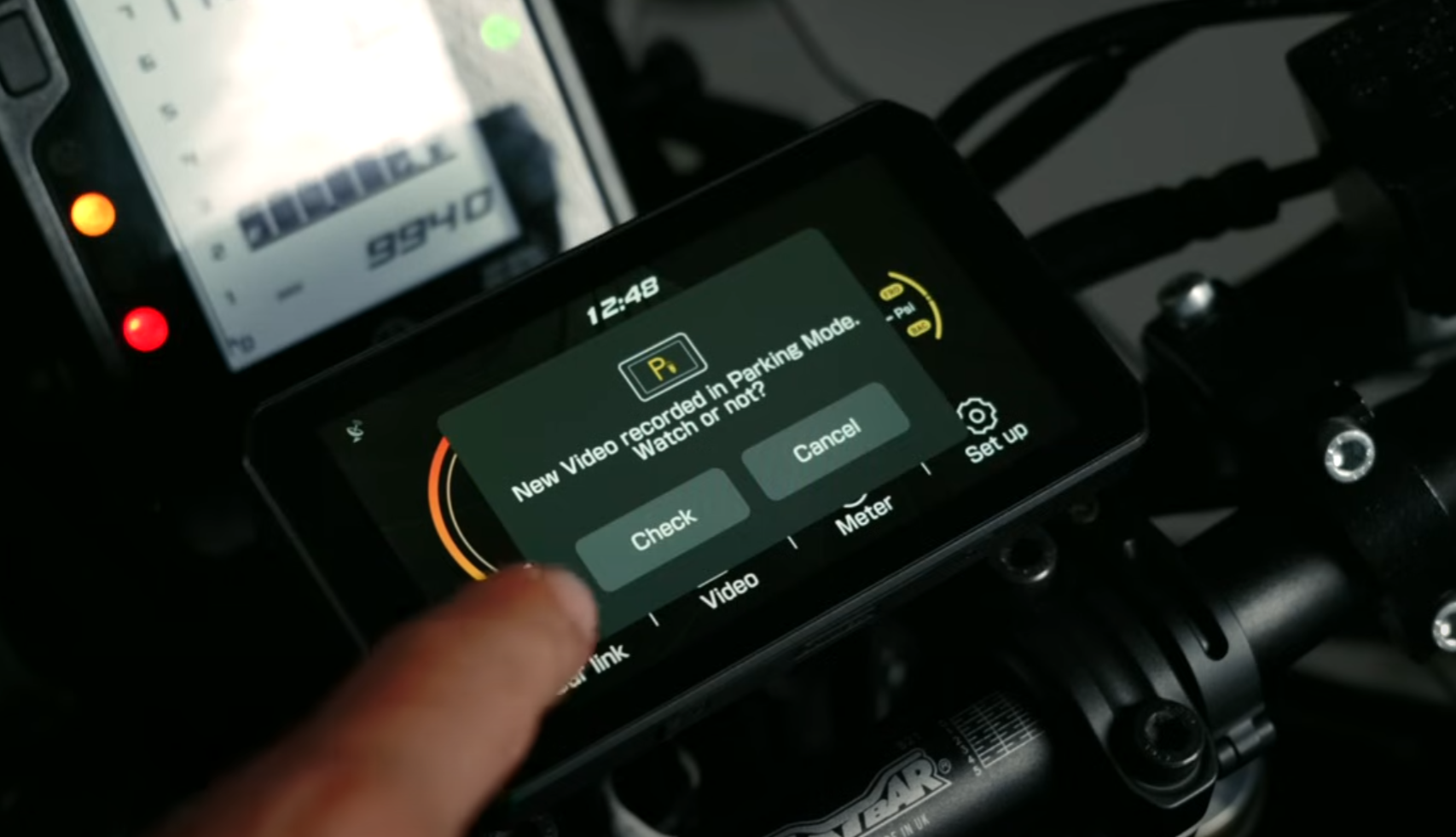

Once vibration triggers recording, if you then start the engine, a pop-up notification on the display will alert you that new parking monitor video is available for viewing.


You can also adjust the sensitivity of the sensor in the settings

  1. The power cable must be properly connected to the battery's positive/negative terminals and the ACC wire
  2. Parking monitor mode draws minimal current, and has low-voltage auto-shutdown to prevent battery drain if voltage drops below 12V
