Camera Cable Lengths (Front and Rear)
The total cable lengths are as follows:
- Front camera: 158cm
- Rear camera: 313cm

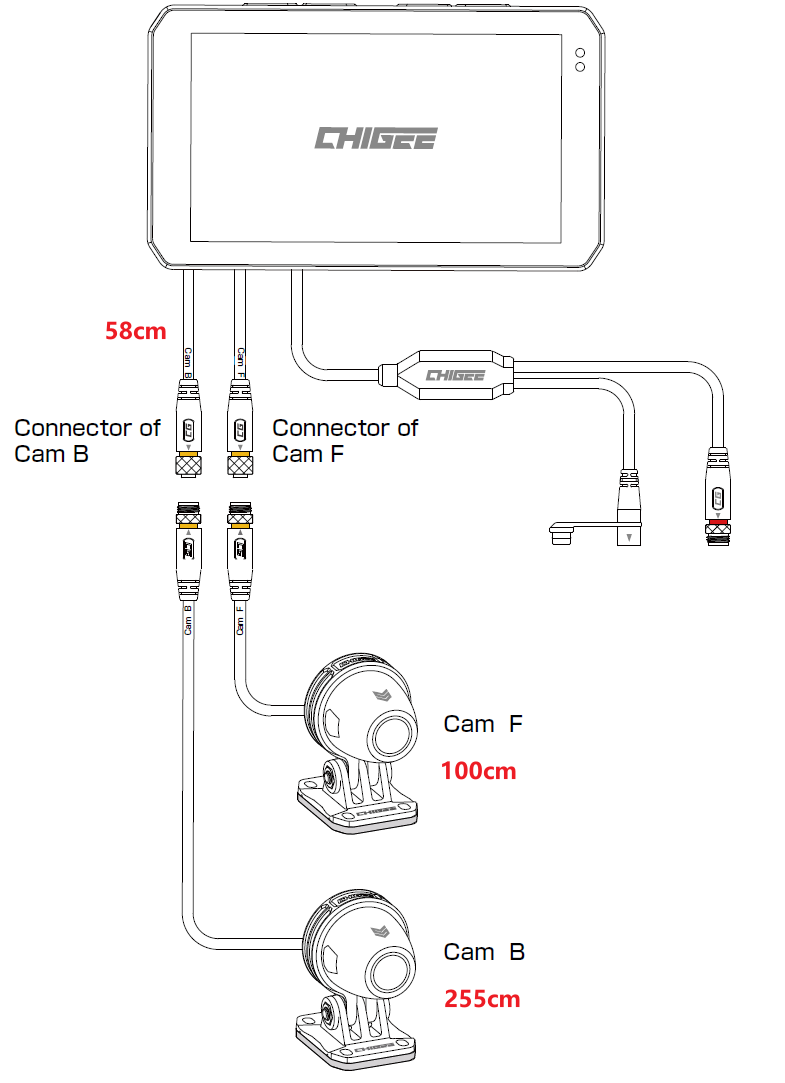

The camera cables at the main unit are as follows:
- Front camera: 58cm
- Rear camera: 58cm
The camera cables included with the cameras themselves are:
- Front camera: 100cm
- Rear camera: 255cm
For AIO-5 Lite / XR2, You can buy the camera extension cable at the following link:
